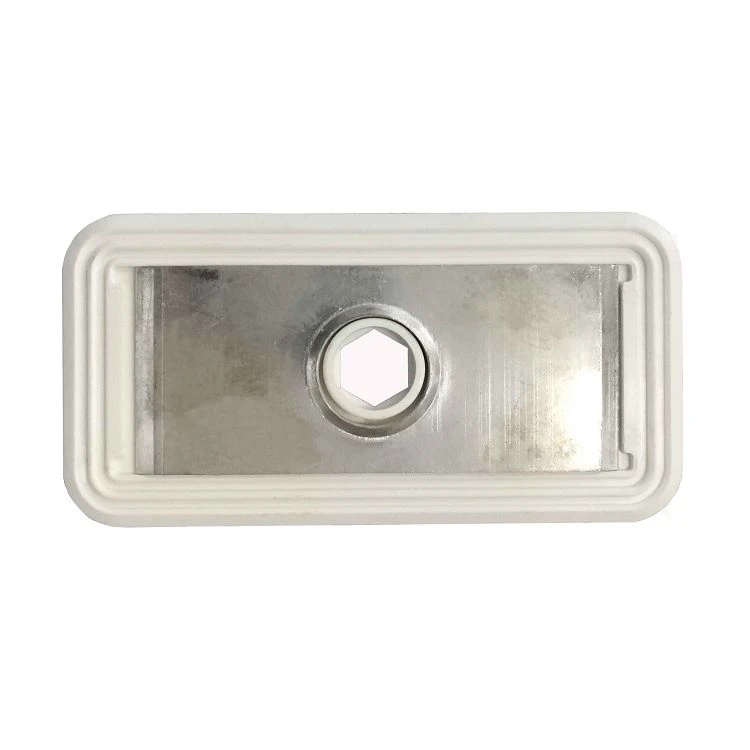

Busbar Insulation Plate
Suzhou Kiande Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of busbar insulation plate in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. If you're going to buy CE approved busbar insulation plate made in China, welcome to get quotation from our factory. For price consultation, contact us.
Busbar joint insulation plate for LV busbar connections. X=122 and X=130 series, covering bar sizes from 40 mm to 688 mm with 1–6 hole configurations. Flame-retardant, suitable for switchgear and distribution panel installations.
KIANDE busbar insulation plates are designed for low-voltage busbar joint connections. They provide reliable insulation between conductive components and enhance connection safety.
Our insulating plates are compatible with X=122 and X=130 busbar systems. A variety of sizes are available to accommodate busbar widths ranging from 40 mm to 688 mm.
All the plates are made from fiberglass, offering stable insulation performance while being thinner in material.
We also offer a variety of hole configurations, ranging from 1 to 6 holes, to facilitate installation with different joint structures.
Busbar insulation plate:
| Insulation Plate X=122 | |
| Bar Size | Hole Distance/Qty |
| X=40*122 | 1Hole |
| X=45*122 | 1Hole |
| X=50*122 | 1Hole |
| X=65*122 | 1Hole |
| X=70*122 | 1Hole |
| X=80*122 | 1Hole |
| X=85*122 | 1Hole |
| X=90*122 | 1Hole |
| X=100*122 | 1Hole |
| X=105*122 | 1Hole |
| X=110*122 | 1Hole |
| X=120*122 | 1Hole |
| X=130*122 | 1Hole |
| X=140*122 | 2Hole |
| X=150*122 | 2Hole |
| X=155*122 | 2Hole |
| X=160*122 | 1Hole |
| X=165*122 | 2Hole |
| X=175*122 | 1Hole |
| X=185*122 | 2Hole B=100 |
| X=190*122 | 2Hole B=95 |
| X=200*122 | 2Hole B=100 |
| X=205*122 | 2Hole B=80 |
| X=210*122 | 2Hole B=105 |
| X=220*122 | 2Hole B=120 |
| X=230*122 | 2Hole B=115 |
| X=250*122 | 2Hole B=75 |
| X=255*122 | 2Hole B=85 |
| X=310*122 | 2Hole B=169 |
| X=390*122 | 2Hole B=209 |
| X=450*122 | 4Hole B=95 |
| X=490*122 | 4Hole B=105 |
| X=628*122 | 6Hole B=90 C=130 |
| X=688*122 | 6Hole B=100 C=150 |
| Insulation Plate X=130 | |
| Bar Size | Hole Distance/Qty |
| X=50*130 | 1Hole |
| X=60*130 | 1Hole |
| X=80*130 | 1Hole |
| X=95*130 | 1Hole |
| X=110*130 | 1Hole |
| X=120*130 | 1Hole |
| X=125*130 | 1Hole |
| X=145*130 | 1Hole |
| X=160*130 | 1Hole |
| X=180*130 | 2Hole B=90 |
| X=190*130 | 2Hole B=85 |
| X=200*130 | 2Hole B=100 |
| X=250*130 | 2Hole B=125 |
| X=324*130 | 2Hole B=194 |
| X=344*130 | 2Hole B=204 |
| X=354*130 | 2Hole B=209 |
| X=394*130 | 2Hole B=229 |
| X=424*130 | 2Hole B=244 |
| X=464*130 | 4Hole B=174 C=90 |
| X=484*130 | 4Hole B=179 C=95 |
| X=504*130 | 4Hole B=184 C=100 |
| X=582*130 | 4Hole B=207 C=125 |
| X=394*130 | 4Hole C=80 |
| X=623*130 | 6Hole B=149 C=80 |
| X=648*130 | 6Hole B=164 C=80 |
Why Choose KIANDE Busbar Insulation Plates
Lightweight Composite Material
The insulation plate is made from a fiberglass composite material. It offers reliable insulation in a thin and lightweight design while meeting industry quality standards.
High Electrical Insulation
Our insulation material can provide stable performance, helping reduce the risk of electrical short circuits. It improves system safety during long-term operation.
Flame-Retardant Material
Our material meets flame-retardant requirements. It improves fire safety inside electrical equipment and is perfect for highly demanding production environments.
Stable Quality
Each insulation plate is manufactured with consistent dimensions, and every batch follows strict quality inspection procedures. Our busbar insulation plates ensure reliable performance, which helps you reduce maintenance costs.
Our Advantages
KIANDE has specialized in busbar equipment and accessories manufacturing for 13 years. Our factory is based in Zhenjiang, with design and sales teams in Suzhou.
We have served customers across the US, Europe, the Middle East and Southeast Asia, earning long-term trust from clients worldwide.
We are committed to helping you：
- Improve electrical safety
- Reduce installation time
- Lower maintenance costs
- Fit multiple busbar configurations
- Support customized projects
- Ensure stable long-term operation
- Contact us today for more information!
