Busbar Trunking Inspection Machine

Suzhou Kiande Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of busbar trunking inspection machine in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. If you're going to buy CE approved busbar trunking inspection machine made in China, welcome to get quotation from our factory. For price consultation, contact us.

Busbar Trunking Inspection Machine can perform various performance tests on different types of busbars and generate test reports upon completion of the tests. It is primarily divided into Busbar Automatic Testing Machine and Busbar Manual Inspection Machine.

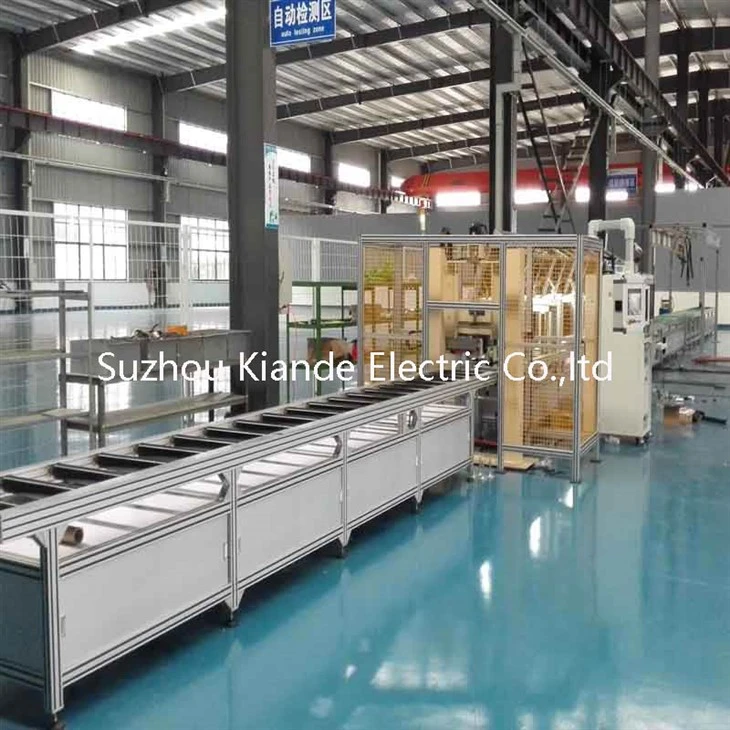

Busbar Automatic Testing Machine is structured into three core stations: feeding positioning, testing, and discharging. When a busbar enters the feeding positioning station, the control system obtains information from barcode scanning or the preceding assembly station to determine the busbar specifications and automatically select the appropriate testing fixture. The system then executes three comprehensive tests-high voltage withstand, insulation resistance, and grounding continuity-and determines whether the product meets the required standards. Finally, a unified and corresponding test report is generated, which can be saved locally, printed on-site, or stored remotely; the final test report format can also be customized according to customer requirements. The machine primarily conducts inspections on straight-end busbars. With production efficiency reaching 2 minutes per piece (time subject to testing requirements), the machine supports busbar height ranging from 100mm to 650mm and busbar length from 1200mm to 6000mm.

Busbar Manual Inspection Machine is designed primarily to meet the inspection needs of short busbars, elbow busbars, flange-end busbars, and other special-shaped busbars. The equipment consists of two parts: the first part is fixture positioning, which is operated manually; the second part is the main testing instrument, which automatically performs the tests and generates a report. This model supports busbar height from 100mm to 650mm and busbar length from 500mm to 3000mm, making it an ideal solution for customized and small-batch production scenarios.

Suzhou Kiande Electric Co., Ltd., established in 2013 and headquartered in Suzhou Industrial Park, is a technology-driven enterprise integrating R&D, design, manufacturing, sales, and service, with a manufacturing base in Yangzhong. The company adheres to rigorous quality control throughout raw material procurement, production processes, and finished product inspections, ensuring all products meet or exceed industry standards. Committed to intelligent manufacturing of power equipment production lines, Suzhou Kiande provides full-process professional support-from equipment selection to production line configuration-to meet diverse quality assurance requirements in the busbar manufacturing industry.

Hot Tags: busbar trunking inspection machine, China busbar trunking inspection machine manufacturers, suppliers, factory
