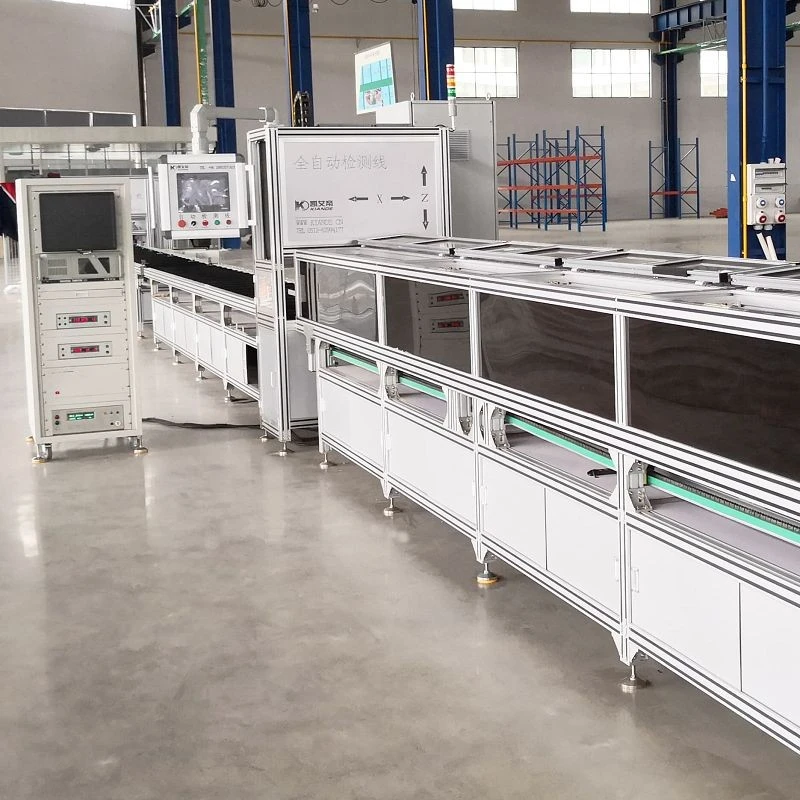

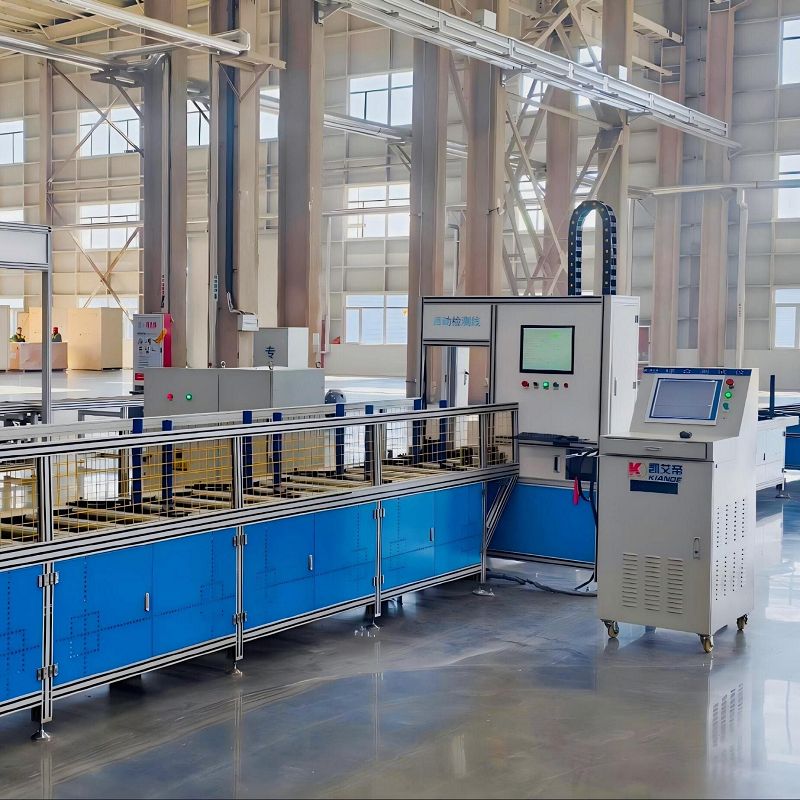

Automatic Busbar Inspection Machine
Suzhou Kiande Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of automatic busbar inspection machine in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. If you're going to buy CE approved automatic busbar inspection machine made in China, welcome to get quotation from our factory. For price consultation, contact us.
As a leading solution provider in the field of busbar processing, Kiande Company has fully integrated its years of professional manufacturing experience and efficient production capabilities into this Automatic Busbar Inspection Machine. This equipment is mainly designed for straight busbars and is used for automatic detection. For other non-standard busbars, it is recommended to perform detection on manual inspection lines. This equipment supports 24/7 continuous operation, ensuring fast turnover while achieving stable and reliable quality control.
This equipment consists of the following three main workstations:
Feeding and positioning station
After the busbar enters the workstation, the control system automatically identifies the busbar specifications by reading barcode information or obtaining process data from upstream assembly workstations, and selects the corresponding testing fixtures accordingly.
Testing station
This workstation performs three electrical safety tests on the busbar: withstand voltage test, insulation resistance test, and grounding continuity test.
Release station
The system automatically determines the qualified status of each test and generates a unified corresponding product quality inspection report based on it.
The inspection report generated by the Automatic Busbar Inspection Machine supports multiple methods such as local archiving, on-site printing, and remote storage. The final format and content of the report can be fully customized according to customer needs. Relying on Kiande's strong customization capabilities, the report template can be adjusted to seamlessly integrate with the customer's internal quality management system.
With strong production capacity and industry-proven reliability, Kiande provides timely delivery, professional installation, and exclusive after-sales support for each Automatic Busbar Inspection Machine, helping customers achieve efficient and standardized busbar safety testing in busbar production lines.
Automatic Busbar Inspection Machine:
| Parameter | Value |
| Model | KD-JCX/NC-E/H-6 |
| Busbar Height | 100mm~650mm |
| Busbar Length | 1200mm~6000mm |
| Busbar Type | Straight length type |
| Position Type | Unilateral / Middle |
| Working Efficiency | 2 minutes/session (adjustable) |
| Servo Nos | 2-axis (Z-axis, X-axis) |
| Vision System | Phase error judgment (optional) |
| Printing System | Barcode printing or report printing (optional) |
| HV Withstanding Test | 0~5000V |
| Insulation Test | 1~1000V |
| Grounding Test | 0~25A |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L12000mm*W1200mm*H1900mm |
