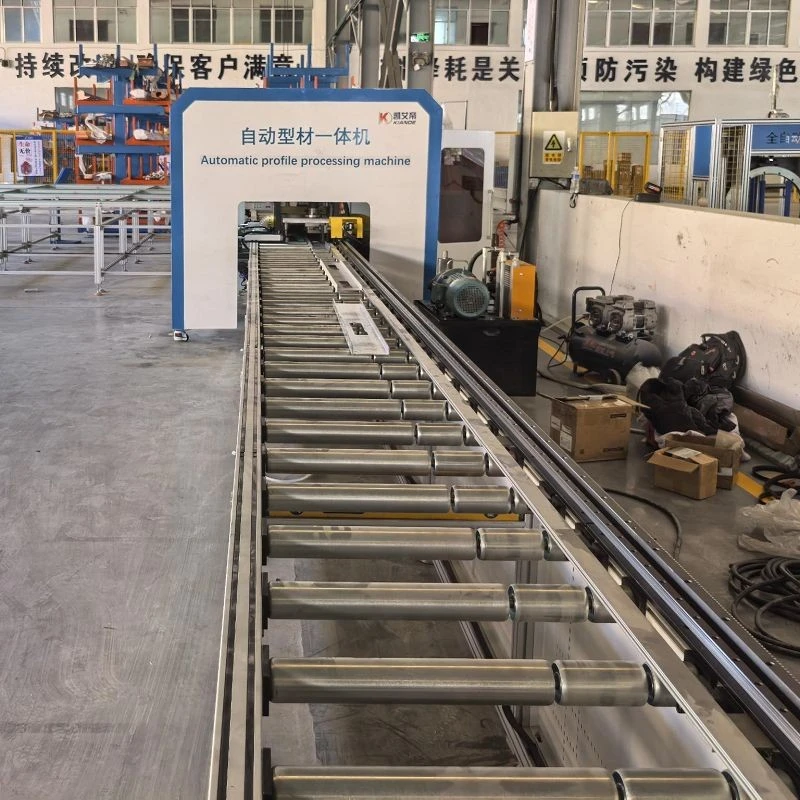

Busbar Profile Processing Machine
Suzhou Kiande Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of busbar profile processing machine in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. If you're going to buy CE approved busbar profile processing machine made in China, welcome to get quotation from our factory. For price consultation, contact us.
KIANDE Busbar Profile Processing Machine specializes in automatic busbar housing processing. You only need to input values such as length, width, height, hole position, and quantity to initiate automatic cutting, punching, and drilling. One machine covers multiple processes, minimizing material waste and labor costs.
Why KIANDE Busbar Profile Processing Machine?
Still struggling with manual measurement in profile fabrication? Manual fabrication causes misaligned holes and raw material waste. KIANDE Busbar Profile Processing Machine helps you eliminate these bottlenecks. Using 5-axis CNC machine positioning for strict tolerance (±0.2mm). One machine covers the whole workflow, improving your output consistency. Reduce dependency on skilled labor.
Contact us right now to get an optimal quotation!
Selling Points:
Vertical punching (300KN) and horizontal punching (30KN) in one machine
01
Positioning accuracy to ±0.2mm for consistent output across every batch
02
Supports aluminum housing, 1200–3000mm length, 45–220mm width, 2.5–5mm thickness
03
Cover plate and side panel height are fully customizable according to your needs
04
Barcode and QR code marking for production traceability are available
05
Processing Flow：
Feeding - Raw profile is loaded into the machine automatically
Parameter input - Operator sets values on the control panel
Punching - Automatic vertical and horizontal punching
Drilling - High precision drilling at set positions
Cutting - Cut profile to specified length
Busbar Profile Processing Machine:
| Parameter | Value |
| Model | KD-XCYTJ-C/A-4.5(6) |
| Function | Vertical punching / Horizontal punching / Horizontal drilling |
| Vertical Punching (KN) | 300 |
| Horizontal Punching (KN) | 30 |
| Stroke of X Axis | 3000mm |
| Speed of X Axis | 0~150mm/s |
| Marking | Barcodes and QR codes (customized) |
| Length | 1200mm~3000mm(maximum customized) |
| Width | 45mm~220mm |
| Thickness | 2.5mm~5mm |
| Maximum Cover Width | 49mm(customized) |
| Maximum Side Height | 39mm(customized) |
| Positioning Accuracy | ±0.3mm |
| Repetitive Positioning Accuracy | ±0.5mm |
| Saw Blade Power | 3kW (customized) |
| Saw Blade Diameter | 405mm |
| Length of Finished Bar | 275-3000mm |
| Max. Hydraulic Force | 31.5MPa |
| Power | 380~415VAC 50~60Hz 10kW |
