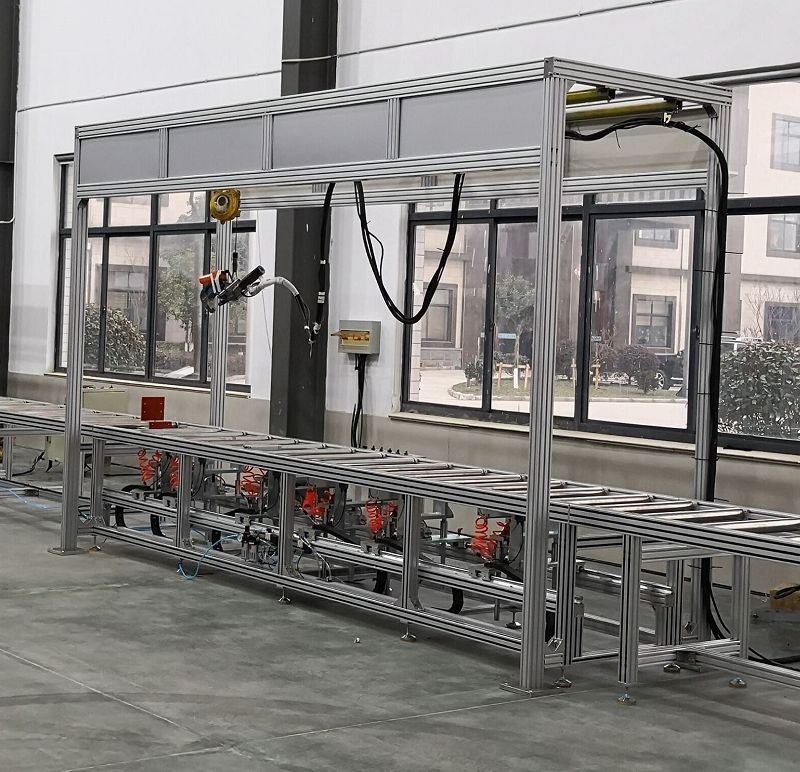

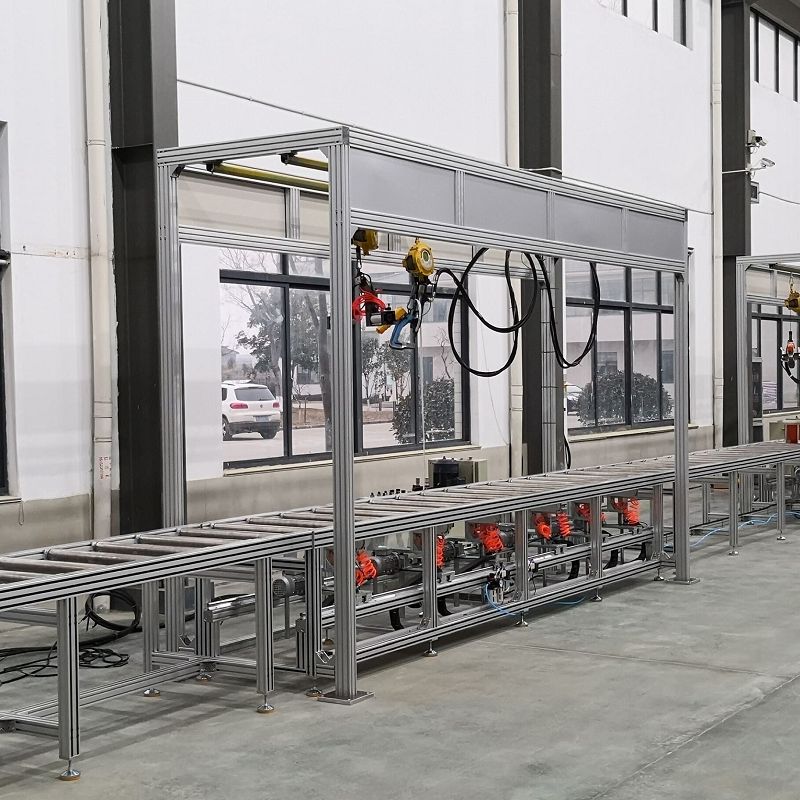

Manual Busbar Assembly Machine
Suzhou Kiande Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of manual busbar assembly machine in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. If you're going to buy CE approved manual busbar assembly machine made in China, welcome to get quotation from our factory. For price consultation, contact us.
KIANDE manual assembly machine for busbar production. Three-station design: pre-assembly, riveting, and accessory assembly. Supports two-piece and four-piece busbar types. Built for operations where operator control is the priority.
Selling Points:
Flexible frame material - aluminum alloy or iron, customised to your specific needs
01
6 or 8 lifting fixtures- stable busbar handling for different facility needs
02
Low power consumption at 1kW - minimal operating cost
03
Simple, reliable structure with low maintenance requirements
04
Automatic VS Semi-Automatic VS Manual?
|
Manual |
Semi-Automatic |
Automatic |
|
|
Operation |
Fully manual |
Operator-assisted |
Fully unmanned |
|
Output |
~3000mm/6min |
~3000mm/4min |
~3000mm/2min |
|
Labor required |
High |
Medium |
Minimal |
|
Power consumption |
1kW |
5kW |
20kW |
|
Best for |
Small-scale, flexible production |
Mid-scale, cost-conscious facilities |
High-volume, continuous production |
Manual Busbar Assembly Machine:
| Parameter | Value |
| Model | KD-SDX/2(4)-6(4.5) |
| Max. Busbar Height | 330mm(single layer) |
| Max. Busbar Length | 6000mm |
| Working Efficiency | About 3 meters/6 minutes |
| Lifting Fixture | 6/8 |
| Frame Material | Aluminum alloy/iron (optional) |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 1kW |
| Equipment Dimension | L18000(13500)mm*W800mm*H800mm |
