Semi-Automatic Busbar Assembly Machine
Suzhou Kiande Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of semi-automatic busbar assembly machine in China. We are committed to providing high quality custom service and OEM&ODM service to global clients. If you're going to buy CE approved semi-automatic busbar assembly machine made in China, welcome to get quotation from our factory. For price consultation, contact us.

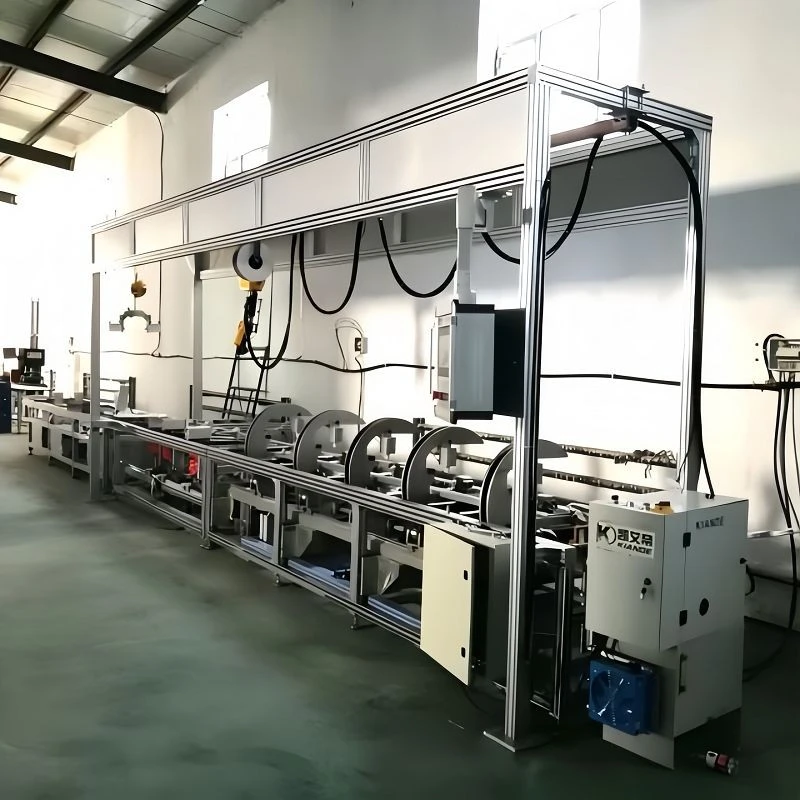

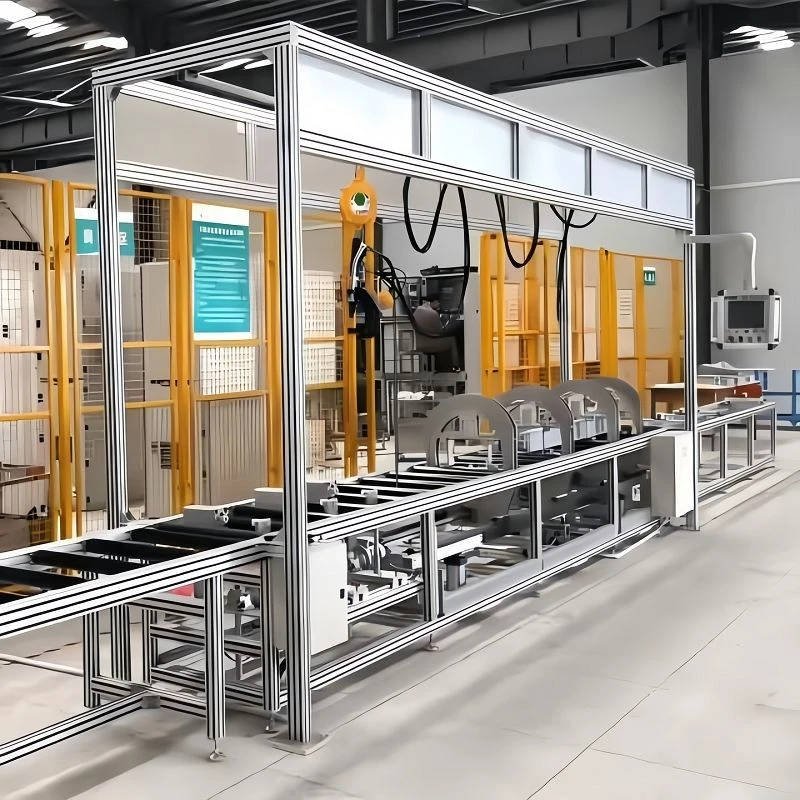

KIANDE semi-automatic assembly machine for busbar production lines. A three-station design - pre-assembly, automatic reversal, and accessory assembly - strikes a balance between manual operation and automated processing.
KIANDE semi-automatic assembly machine is an affordable option for medium-sized busbar manufacturers. Just contact us right now to upgrade your busbar assembly line!
Selling Points:
The three-station design streamlines the processing flow, helping improve your production efficiency.
01
The automatic flipping function eliminates the need for manual flipping, reducing labor requirements and minimizing operational errors.
02
The aluminum suspension structure is equipped with three manual lifting devices, ensuring the stable transfer of the busbar between stations.
03
Compared to a fully automated assembly machine, it consumes less energy (5 kW)-making it an economical choice for medium-volume production.
04
Processing Flow:
Pre-assembly station
Operator pre-assembles busbar components and fixes them using fixtures
Automatic reversal station

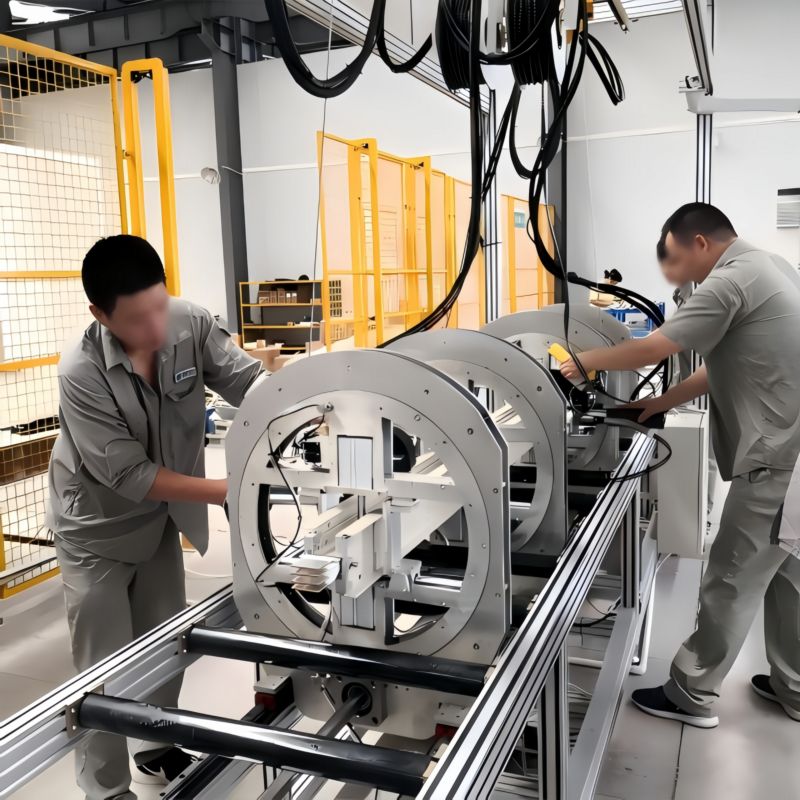

Busbar is clamped and riveted on one side. The rotator then flips 180° for riveting on the other side
Accessory assembly station
Operator installs busbar accessories after riveting is complete
Automatic VS Semi-Automatic VS Manual?
|
Manual |
Semi-Automatic |
Automatic |
|
|
Operation |
Fully manual |
Operator-assisted |
Fully unmanned |
|
Output |
~3000mm/6min |
~3000mm/4min |
~3000mm/2min |
|
Labor required |
High |
Medium |
Minimal |
|
Power consumption |
1kW |
5kW |
20kW |
|
Best for |
Small-scale, flexible production |
Mid-scale, cost-conscious facilities |
High-volume, continuous production |
Semi-Automatic Busbar Assembly Machine:
| Parameter | Value |
| Model | KD-ZDX/H-4-6(4.5) |
| Max. Busbar Height | 330mm(single layer) |
| Max. Busbar Length | 6000mm |
| Working Efficiency | About 3 meters/4 minutes |
| Riveting Machine | Not included |
| Rotator Nos | 4(Standard Configuration) |
| Length of Reversal Part | 4500mm |
| Manual Lifting Fixture Nos | 3 |
| Manual Operation Station Length | 1500mm |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L18000mm*W800mm*H1900mm |
